Gravitational lensing of the CMB

CMB photons travel for $13.8$ billion years from last scattering to us, passing through the time-evolving gravitational potentials of the intervening matter. Each transit bends the photon path by a small angle ( $\sim 2'$ ). Integrated along the line of sight, this remapping smooths the acoustic peaks at the few-percent level and – more importantly – converts a small fraction of $E$ -mode polarisation power into $B$ -mode polarisation. The lensing $B$ -mode signal is the dominant foreground for inflationary $B$ -mode searches and a clean probe of the matter distribution in its own right.

This chapter computes two new objects: $C_L^{\phi\phi}$ , the power spectrum of the lensing potential; and the lensed $TT$ , $EE$ , $TE$ , $BB$ spectra from the unlensed scalar spectra of chapter 5 plus the lensing convolution. Unlike previous chapters, the lensing convolution itself needs two pieces of new mathematical machinery – Wigner small- $d$ functions and the CL05 small-deflection expansion – so this chapter is split into two halves.

The lensing potential

A photon coming from direction $\hat n$ at last scattering reaches us from a slightly different direction $\hat n + \vec\alpha(\hat n)$ , where the deflection angle is the gradient of the lensing potential:

\phi(\hat n) = -2\int_0^{\chi_*}\mathrm{d}\chi\,\frac{\chi_* - \chi}{\chi_*\chi}\,\Psi_W(\chi \hat n, \tau_0 - \chi), \qquad \vec\alpha = \nabla_{\hat n}\phi.

The Weyl potential $\Psi_W = (\Phi + \Psi)/2$ is the gauge-invariant combination defined in chapter 3. The geometric kernel $(\chi_* - \chi)/(\chi_*\chi)$ peaks at $\chi \sim \chi_*/2$ – matter halfway to the CMB does most of the lensing – and vanishes at both endpoints.

The angular power spectrum of $\phi$ is what we need for everything downstream. From Eq.,

C_L^{\phi\phi} = \int \frac{\mathrm{d}k}{k}\,\mathcal{P}_\mathcal{R}(k)\,\bigl[\Delta^\phi_L(k)\bigr]^2, \qquad \Delta^\phi_L(k) = -2\int_0^{\chi_*}\mathrm{d}\chi\,\frac{\chi_* - \chi}{\chi_*\chi}\,T_{\Psi_W}(k, \tau_0 - \chi)\, j_L(k\chi),

with $T_{\Psi_W}(k, \tau)$ the Weyl transfer function. At high $L$ the Limber approximation $j_L(k\chi) \to \sqrt{\pi/(2L + 1)}\,\delta(k\chi - L - 1/2)/k$ collapses the integral to a one-dimensional one and is sub-percent accurate above $L \gtrsim 50$ .

Reconstruction strategy.

Our code uses the full LOS integral for $L \leq 5$ (where Limber fails badly) and Limber for $L \geq 6$ . Both branches share the same $T_{\Psi_W}(k, \tau)$ grid, computed once.

The Weyl potential in synchronous gauge

The Boltzmann code from chapter 3 carries $\eta$ and $h$ . We reconstruct the Weyl potential from

\Psi_W = \eta - \frac{\mathcal{H}}{k}\sigma - \frac{3}{4 k^2}\,\delta\rho_\pi,

with $\sigma = (\dot h + 6\dot\eta)/(2k)$ and $\delta\rho_\pi = (\rho + p)\sigma_\text{anis}$ the species-summed anisotropic stress. This follows from the chapter-3 gauge transformation.

The code: `evolve_phi`

Cell: evolve_phi

def evolve_phi(k, bg, thermo, pgrid, tau_out):
    """Evolve mode k, return the Weyl potential Psi_W(tau) at each tau_out point."""
    tau_start = max(1e-4, min(1e-3 / k, tau_out[0] * 0.5))
    y0 = adiabatic_ics(k, tau_start, bg, pgrid)

    bg_vec  = pgrid['bg_vec']
    sp_a_x  = pgrid['sp_a_x'];  sp_a_c  = pgrid['sp_a_c']
    sp_op_x = pgrid['sp_op_x']; sp_op_c = pgrid['sp_op_c']
    sp_cs_x = pgrid['sp_cs_x']; sp_cs_c = pgrid['sp_cs_c']

    sol = integrate.solve_ivp(
        boltzmann_derivs, (tau_start, tau_out[-1]), y0,
        args=(k, bg_vec, sp_a_x, sp_a_c, sp_op_x, sp_op_c, sp_cs_x, sp_cs_c),
        t_eval=tau_out, method='LSODA', rtol=1e-6, atol=1e-10)
    if not sol.success:
        return np.zeros(len(tau_out))

    psi_arr = np.zeros(len(tau_out))
    for i, tau in enumerate(tau_out):
        y = sol.y[:, i]
        (a, adotoa, grhog_t, grhor_t, _, _,
         _, _, _, sigma,
         etak, _, _, _, _, _, pig, _, _, pir) = _common_terms(
            tau, y, k, bg_vec, sp_a_x, sp_a_c)
        dgpi = grhog_t * pig + grhor_t * pir
        eta  = etak / k
        # Psi_W = eta - (a'/a) sigma/k - 3 dgpi / (4 k^2)
        psi_arr[i] = eta - adotoa * sigma / k - 0.75 * dgpi / (k * k)
    return psi_arr

The code: `lensing_potential`

Cell: lensing_potential

def lensing_potential(params, bg, thermo, pgrid,
                      ells=None, N_k=40, N_chi=120, ell_los_max=5):
    """Compute C_L^{phi phi} via hybrid LOS (low L) + Limber (high L)."""
    tau_star = float(thermo['tau_star'])
    tau0     = float(bg['tau0'])
    chi_star = tau0 - tau_star

    if ells is None:
        ells = np.unique(np.concatenate([
            np.arange(2, 30),
            np.geomspace(30, 2500, 80).astype(int)]))
    ells = np.asarray(ells, dtype=int)

    ell_max      = int(ells.max())
    chi_min_eff  = 0.01 * chi_star
    k_max_needed = (ell_max + 0.5) / chi_min_eff
    k_max        = min(max(k_max_needed * 1.2, 1.0), 5.0)
    k_arr        = np.geomspace(1e-5, k_max, N_k)

    chi_arr    = np.linspace(0.001 * chi_star, 0.999 * chi_star, N_chi)
    tau_sorted = np.sort(tau0 - chi_arr)
    chi_sorted = tau0 - tau_sorted

    phi_grid_sorted = np.zeros((N_k, N_chi))
    for i_k, k in enumerate(k_arr):
        phi_grid_sorted[i_k, :] = evolve_phi(k, bg, thermo, pgrid, tau_sorted)
    phi_grid_asc = phi_grid_sorted[:, ::-1]

    A_s = params['A_s']; n_s = params['n_s']; k_pivot = params['k_pivot']

    # --- LOS branch (ell <= ell_los_max) ---
    ells_los = ells[ells <= ell_los_max]
    Cl_los   = np.zeros(len(ells_los))
    W_lens   = (chi_star - chi_sorted) / (chi_star * chi_sorted)
    for i_ell, ell in enumerate(ells_los):
        Delta = np.zeros(N_k)
        for i_k, k in enumerate(k_arr):
            jl = special.spherical_jn(int(ell), k * chi_sorted)
            integrand = -2.0 * phi_grid_sorted[i_k] * W_lens * jl
            Delta[i_k] = -np.trapz(integrand, chi_sorted)
        P_R = A_s * (k_arr / k_pivot)**(n_s - 1.0)
        Cl_los[i_ell] = 4.0 * np.pi * np.trapz(P_R * Delta**2, np.log(k_arr))

    # --- Limber branch (ell > ell_los_max) ---
    chi_asc    = chi_sorted[::-1]
    phi_interp = interpolate.RegularGridInterpolator(
        (np.log(k_arr), chi_asc), phi_grid_asc,
        bounds_error=False, fill_value=0.0)
    ells_limber = ells[ells > ell_los_max]
    Cl_limber   = np.zeros(len(ells_limber))
    for i_ell, ell in enumerate(ells_limber):
        nu     = ell + 0.5
        k_lim  = nu / chi_asc
        valid  = (k_lim >= k_arr[0]) & (k_lim <= k_arr[-1])
        if not np.any(valid):
            continue
        chi_v  = chi_asc[valid]
        k_v    = k_lim[valid]
        T_psi  = phi_interp((np.log(k_v), chi_v))
        Delta2_R = A_s * (k_v / k_pivot)**(n_s - 1.0)
        chiW2  = (chi_star - chi_v)**2 / (chi_star**2 * chi_v)
        Cl_limber[i_ell] = (8.0 * np.pi**2 / nu**3) * np.trapz(
            T_psi**2 * Delta2_R * chiW2, chi_v)

    Cl_phi = np.zeros(len(ells))
    Cl_phi[ells <= ell_los_max] = Cl_los
    Cl_phi[ells > ell_los_max]  = Cl_limber
    Dl_phi = (ells * (ells + 1.0))**2 * Cl_phi / (2.0 * np.pi)

    return {'ell': ells, 'Cl_phi_phi': Cl_phi, 'Dl_phi_phi': Dl_phi,
            'k_arr': k_arr, 'chi_star': chi_star}

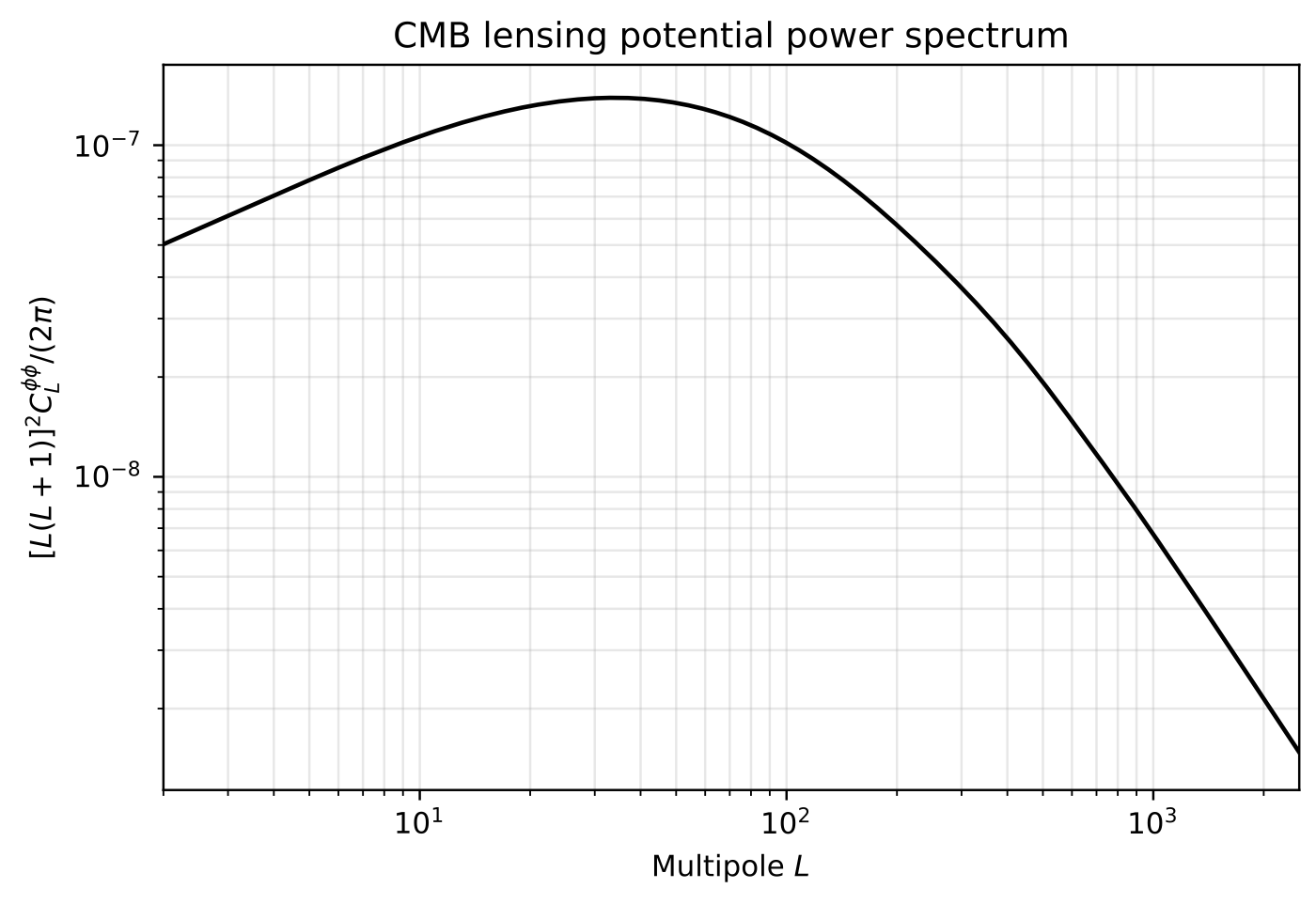

Plot: $C_L^{\phi\phi}$

Cell: plot

C_L^{\phi\phi}

phi = lensing_potential(params, bg, th, init_perturbation_grid(bg, th))

fig, ax = plt.subplots(figsize=(7, 4.5))
ax.loglog(phi['ell'], phi['Dl_phi_phi'], 'k-', lw=1.5)
ax.set_xlabel(r'$L$')
ax.set_ylabel(r'$[L(L+1)]^2 C_L^{\phi\phi}/(2\pi)$')
ax.set_title('CMB lensing potential power spectrum')
ax.set_xlim(2, 2500); ax.grid(True, which='both', alpha=0.3)
plt.show()

$C_L^{\phi\phi}$ peaks around $L \sim 60$ . The total deflection variance is $\langle |\nabla\phi|^2\rangle \approx 2 \times 10^{-7}$ , giving an RMS deflection of $\sim 2'$ – about the angular scale of an acoustic peak.

Lensing the spectra: the convolution

Lensing remaps the CMB sky: $\tilde T(\hat n) = T(\hat n + \vec\alpha(\hat n))$ . The lensed angular power spectrum is then a convolution of the unlensed spectrum with $C_L^{\phi\phi}$ . For TT, EE, TE the standard form (Challinor & Lewis 2005, CL05 hereafter) writes the convolution in real space via correlation functions $\xi(\beta)$ , exploits a small-deflection Gaussian approximation, and transforms back to harmonic space. The discrete-multipole structure of the operations comes out as weighted Wigner small- $d$ functions $d^\ell_{ss'}(\beta)$ , which generalise Legendre polynomials to spin-2 fields.

We need three pieces:

1. A stable evaluator for $d^\ell_{ss'}(\beta)$ .

Direct evaluation of the Jacobi polynomial expression is exact at the source, but the prefactorial ratios blow up for moderate $\ell$ . Using log-gamma cures that. Symmetries fold all $(s, s')$ combinations onto a canonical one.

2. The CL05 convolution for TT, EE, TE.

Compute $\xi^{XY}(\beta)$ at Gauss-Legendre nodes, modulate by the lensing Gaussian, transform back.

3. A flat-sky BB-from-EE convolution.

The standard analytic formula for the $E\to B$ leakage induced by lensing.

We code each of these in turn. They are short and self-contained, so we drop them straight into the notebook – no opaque imports.

Wigner- $d$ functions

The small- $d$ Wigner function $d^\ell_{ss'}(\beta)$ is defined for integer $\ell \geq |s|, |s'|$ and $\beta \in [0, \pi]$ by

d^\ell_{s, s'}(\beta) = \sqrt{\frac{(\ell - s')!\, (\ell + s')!}{(\ell - s)!\, (\ell + s)!}}\; \sin^{s - s'}\!\bigl(\tfrac{\beta}{2}\bigr)\, \cos^{s + s'}\!\bigl(\tfrac{\beta}{2}\bigr)\, P^{(s - s', s + s')}_{\ell - s}(\cos\beta),

valid for $s \geq |s'|$ and $s + s' \geq 0$ ; other combinations follow from the symmetry relations

d^\ell_{s, s'} = (-1)^{s - s'}\, d^\ell_{s', s} = (-1)^{s - s'}\, d^\ell_{-s, -s'}.

For our application we need $d^\ell_{00}, d^\ell_{22}, d^\ell_{2,-2}, d^\ell_{02}$ on a Gauss-Legendre angular grid, for $\ell = 0, \ldots, \ell_\mathrm{max}$ . The square-root in Eq. contains a ratio of factorials that, for $\ell \sim 2000$ , is way outside floating-point range – so we compute it in log space and exponentiate at the end. The $(0, 0)$ case reduces to the Legendre polynomial $P_\ell(\cos\beta)$ , which is faster than the general Jacobi route.

Cell: factorials and the normalising prefactor

from math import lgamma
from scipy.special import eval_legendre, eval_jacobi

def _log_fact(n):
    return lgamma(n + 1.0)

def _norm_factor(l, m, mp):
    """sqrt[(l-m)!(l+m)! / ((l-mp)!(l+mp)!)] computed via log-gamma."""
    log = 0.5 * (_log_fact(l - m) + _log_fact(l + m)
                 - _log_fact(l - mp) - _log_fact(l + mp))
    return np.exp(log)

Cell: single-

\ell

Wigner evaluator (canonical s and s prime)

def _d_general(l, m, mp, beta):
    """d^l_{m, mp}(beta) for arrays of beta. Assumes m >= |mp| and m + mp >= 0."""
    sin_h = np.sin(beta / 2.0)
    cos_h = np.cos(beta / 2.0)
    cos_b = np.cos(beta)
    norm  = _norm_factor(l, m, mp)
    s = sin_h ** (m - mp) if m != mp     else np.ones_like(beta)
    c = cos_h ** (m + mp) if (m + mp) != 0 else np.ones_like(beta)
    n = l - m
    if n < 0:
        return np.zeros_like(beta)
    jacobi = eval_jacobi(n, m - mp, m + mp, cos_b)
    return norm * s * c * jacobi

The driver routine collects a full table $d[\ell, \beta]$ for $\ell \in [0, \ell_\mathrm{max}]$ at all $\beta$ , using the symmetries to map any requested $(s, s')$ onto the canonical form. The $(0, 0)$ branch short-circuits to Legendre.

Cell: wigner_d_array

def wigner_d_array(l_max, m, mp, beta):
    """Compute d^l_{m, mp}(beta) for l = 0..l_max at all beta values.
    Returns array of shape (l_max + 1, len(beta))."""
    beta = np.atleast_1d(beta).astype(float)
    d = np.zeros((l_max + 1, len(beta)))

    # (0, 0) reduces to Legendre P_l(cos beta)
    if m == 0 and mp == 0:
        cos_b = np.cos(beta)
        for l in range(l_max + 1):
            d[l] = eval_legendre(l, cos_b)
        return d

    # Map (m, mp) to canonical form using symmetries.
    sign = 1.0
    m_eff, mp_eff = m, mp
    if abs(mp_eff) > abs(m_eff):
        sign *= (-1.0) ** (m_eff - mp_eff)
        m_eff, mp_eff = mp_eff, m_eff
    if m_eff < 0 or (m_eff + mp_eff) < 0:
        sign *= (-1.0) ** (m_eff - mp_eff)
        m_eff, mp_eff = -m_eff, -mp_eff
        if abs(mp_eff) > abs(m_eff):
            sign *= (-1.0) ** (m_eff - mp_eff)
            m_eff, mp_eff = mp_eff, m_eff

    l_min = max(abs(m_eff), abs(mp_eff))
    for l in range(l_min, l_max + 1):
        d[l] = sign * _d_general(l, m_eff, mp_eff, beta)
    return d

Reading the code.

_log_fact uses lgamma to compute $\log n!$ without overflow.
_norm_factor combines four log-factorials, halves, then exponentiates – safe up to $\ell \sim 10^4$ .
_d_general only handles $s \geq |s'|, s + s' \geq 0$ ; the symmetry mapping in wigner_d_array reduces arbitrary $(s, s')$ to that.
In our application we always have $\ell \geq \max(|s|, |s'|)$ for the multipoles that matter, so the $l < l_\mathrm{min}$ rows are correctly zero.

The CL05 small-deflection expansion for TT, EE, TE

In real space, the unlensed correlation functions are

\xi^{TT}(\beta) = \sum_\ell \frac{2\ell + 1}{4\pi}\,C_\ell^{TT}\,d^\ell_{00}(\beta), \qquad \xi^\pm(\beta) = \sum_\ell \frac{2\ell + 1}{4\pi}\,C_\ell^{EE}\,d^\ell_{2,\pm 2}(\beta), \qquad \xi^{TE}(\beta) = -\sum_\ell \frac{2\ell + 1}{4\pi}\,C_\ell^{TE}\,d^\ell_{02}(\beta).

CL05 show that the lensed correlation functions are obtained by replacing each $C_\ell^{XY}$ in the sum by

C_\ell^{XY}\,\exp\!\bigl(-\tfrac{1}{2}L(L+1)\,\sigma^2(\beta)\bigr), \qquad \sigma^2(\beta) = \sigma_\alpha^2 - C_{gl}(\beta),

where $\sigma_\alpha^2 = \langle |\nabla \phi|^2\rangle$ is the total deflection variance and $C_{gl}(\beta) = \sum_\ell \frac{2\ell + 1}{4\pi}L(L+1)\, C_L^{\phi\phi} d^\ell_{00}(\beta)$ is the lensing correlation function. The Gaussian factor is the small-deflection-limit form of the lensing weighting; at $\beta = 0$ it becomes unity and at large $\beta$ it saturates to $\exp(-\sigma_\alpha^2 L(L+1)/2)$ . After re-summing the modulated $\xi$ 's, we transform back to multipoles by Gauss-Legendre quadrature in $\beta$ .

Cell: lensed_cls_TT_EE_TE (CL05)

from scipy.special import roots_legendre

def lensed_cls_TT_EE_TE(ell_arr, Cl_TT, Cl_EE, Cl_TE, Cl_phi_phi, n_theta=None):
    """Curved-sky lensed TT, EE, TE via the CL05 small-deflection expansion.
    Recommended: n_theta >= 2 * max(ell_arr) for sub-percent TT/EE/TE."""
    ell_arr = np.asarray(ell_arr, dtype=int)
    lmax    = int(ell_arr.max())
    if n_theta is None:
        n_theta = max(2 * lmax + 200, 500)
    ell_full = np.arange(lmax + 1)
    def _pad(C):
        return np.interp(ell_full, ell_arr, np.asarray(C), left=0.0, right=0.0)
    CTT, CEE, CTE, Cpp = _pad(Cl_TT), _pad(Cl_EE), _pad(Cl_TE), _pad(Cl_phi_phi)

    # Gauss-Legendre nodes and weights for the beta integral
    x, w  = roots_legendre(n_theta)
    beta  = np.arccos(x)

    # Wigner-d tables on the beta grid
    d_00  = wigner_d_array(lmax, 0,  0, beta)
    d_22  = wigner_d_array(lmax, 2,  2, beta)
    d_2m2 = wigner_d_array(lmax, 2, -2, beta)
    d_02  = wigner_d_array(lmax, 0,  2, beta)

    ell_w = (2 * ell_full + 1) / (4.0 * np.pi)
    Lpp   = ell_full * (ell_full + 1.0)

    # Total deflection variance and beta-dependent variance
    sigma2_alpha = np.sum((2 * ell_full + 1) * Lpp * Cpp / (4.0 * np.pi))
    C_gl_beta    = np.einsum('l,lb->b', (2*ell_full + 1) * Lpp * Cpp / (4.0*np.pi), d_00)
    sigma2_beta  = np.maximum(sigma2_alpha - C_gl_beta, 0.0)

    # Per-l Gaussian lensing modulation: exp(- L(L+1) sigma^2(beta) / 2)
    smoothing_per_l = np.exp(-0.5 * Lpp[:, None] * sigma2_beta[None, :])
    weight = ell_w[:, None] * smoothing_per_l

    # Lensed correlation functions
    xi_TT_lens = np.einsum('lb,lb->b', CTT[:, None] * weight, d_00)
    xi_p_lens  = np.einsum('lb,lb->b', CEE[:, None] * weight, d_22)
    xi_m_lens  = np.einsum('lb,lb->b', CEE[:, None] * weight, d_2m2)
    xi_TE_lens = -np.einsum('lb,lb->b', CTE[:, None] * weight, d_02)

    # Inverse transforms back to multipoles
    Cl_TT_lensed = 2.0 * np.pi * np.einsum('b,lb,b->l', xi_TT_lens, d_00, w)
    Cl_EE_lensed = (np.pi * np.einsum('b,lb,b->l', xi_p_lens, d_22, w)
                  + np.pi * np.einsum('b,lb,b->l', xi_m_lens, d_2m2, w))
    Cl_TE_lensed = -2.0 * np.pi * np.einsum('b,lb,b->l', xi_TE_lens, d_02, w)

    return {
        'ell': ell_arr,
        'Cl_TT_lensed': np.interp(ell_arr, ell_full, Cl_TT_lensed),
        'Cl_EE_lensed': np.interp(ell_arr, ell_full, Cl_EE_lensed),
        'Cl_TE_lensed': np.interp(ell_arr, ell_full, Cl_TE_lensed),
        'sigma2_alpha': sigma2_alpha,
    }

Reading the code.

roots_legendre(n_theta) gives Gauss-Legendre nodes $x = \cos\beta$ and weights $w$ used to integrate over $\beta \in [0, \pi]$ exactly for polynomials up to degree $2n_\theta - 1$ .
The four einsum calls compute the correlation functions $\xi^{XY}(\beta)$ from the lensed $C_\ell$ 's, and then the inverse transforms back. The structure 'lb,lb->b' sums over $\ell$ at each $\beta$ ; 'b,lb,b->l' sums over $\beta$ at each $\ell$ , weighted by $w$ .
Accuracy: n_theta = 2 lmax + 200 gives sub-percent TT/EE/TE.

$B$ from $E$ via lensing (flat-sky)

For BB the curved-sky CL05 form is more involved. We instead use the Hu-Okamoto/Lewis-Challinor flat-sky formula, which is analytic and a few-percent accurate at all $\ell$ . The flat-sky BB induced by lensing of an unlensed $E$ -mode field is

C_\ell^{BB,\mathrm{lens}}(L) = \frac{1}{(2\pi)^2}\int\!\mathrm{d}^2\vec\ell'\, \bigl[\vec\ell' \!\cdot\! (\vec L - \vec\ell')\bigr]^2\, \sin^2\!\bigl(2(\varphi_{\vec L - \vec\ell'} - \varphi_{\vec L})\bigr)\, C^{\phi\phi}_{\ell'}\, C^{EE,\mathrm{unl}}_{|\vec L - \vec\ell'|}.

The geometric prefactor $[\vec \ell' \cdot (\vec L - \vec\ell')]^2$ encodes the gradient of $\phi$ acting on $E$ ; the $\sin^2(2\cdot)$ is the spin-2 rotation that mixes $E$ and $B$ when the polarisation basis rotates along the photon path. In polar coordinates with $\vec L$ along $\hat x$ and $\vec\ell' = (\ell'\cos\alpha, \ell'\sin\alpha)$ , the angle $\varphi_{\vec L - \vec\ell'}$ simplifies and we can integrate $\alpha$ on a uniform grid.

Cell: lensed_BB_from_EE_flat_sky

def lensed_BB_from_EE_flat_sky(ell_arr, Cl_EE_unl, Cl_phi_phi, n_l=200, n_phi=80):
    """Flat-sky BB from lensing of E, Hu-Okamoto / Lewis-Challinor formula."""
    ell_arr = np.asarray(ell_arr, dtype=int)
    lmax    = int(ell_arr.max())
    ell_full = np.arange(lmax + 1)
    CEE_full = np.interp(ell_full, ell_arr, np.asarray(Cl_EE_unl), left=0.0, right=0.0)
    Cpp_full = np.interp(ell_full, ell_arr, np.asarray(Cl_phi_phi), left=0.0, right=0.0)

    # Log-spaced l' grid; uniform alpha grid for the angular integral
    l_p   = np.geomspace(2.0, float(lmax), n_l)
    Cpp_p = np.interp(l_p, ell_full, Cpp_full)
    dlnlp = np.gradient(np.log(l_p))

    alpha  = np.linspace(0.0, 2.0 * np.pi, n_phi, endpoint=False)
    da     = 2.0 * np.pi / n_phi
    cos_a, sin_a = np.cos(alpha), np.sin(alpha)
    sin2_a = sin_a ** 2

    Cl_BB_lens = np.zeros(len(ell_full))
    for L in ell_full:
        if L < 2:
            continue
        Lm_sq = L*L + l_p[None, :]**2 - 2.0 * L * l_p[None, :] * cos_a[:, None]
        Lm_sq = np.maximum(Lm_sq, 0.25)
        Lm    = np.sqrt(Lm_sq)
        dot   = L * l_p[None, :] * cos_a[:, None] - l_p[None, :]**2
        Lmm   = L - l_p[None, :] * cos_a[:, None]
        sin2_2phi = 4.0 * l_p[None, :]**2 * sin2_a[:, None] * Lmm**2 / Lm_sq**2
        CEE_at = np.interp(Lm.ravel(), ell_full, CEE_full).reshape(Lm.shape)
        integrand = dot**2 * sin2_2phi * Cpp_p[None, :] * CEE_at
        Cl_BB_lens[L] = (1.0 / (2.0 * np.pi)**2) * np.sum(
            integrand * l_p[None, :]**2 * dlnlp[None, :] * da)

    return np.interp(ell_arr, ell_full, Cl_BB_lens)

Reading the code.

The two index expressions l_p[None, :] and cos_a[:, None] make the integrand a 2D array over $(\alpha, \ell')$ ; broadcasting fills in the rest.
The integration measure is $\mathrm{d}^2\vec\ell' = \ell'\,\mathrm{d}\ell'\,\mathrm{d}\alpha$ , which in log-spacing reads $\ell'^2\,\mathrm{d}\ln\ell'\,\mathrm{d}\alpha$ – hence the l_p**2 * dlnlp * da factor.
Accuracy: n_l = 200, n_phi = 80 gives few-percent BB at $\ell \leq 1500$ ; finer grids approach CAMB asymptotically.

Driver: `lens_spectra`

The final step combines both pieces. We compute the lensed TT/EE/TE from the CL05 routine, the lensed BB from $E$ -mode leakage via the flat-sky integral, and optionally add a separately-supplied unlensed BB (the tensor contribution from chapter 7) modulated by the same Gaussian lensing envelope.

Cell: lens_spectra

def lens_spectra(ell_arr, Cl_TT, Cl_EE, Cl_TE, Cl_phi_phi,
                 Cl_BB_unl=None, n_theta=None, n_l_BB=200, n_phi_BB=80):
    """Full lensed CMB spectra: TT, EE, BB, TE.
    Cl_BB_unl: optional unlensed BB (e.g. tensors from chapter 7)."""
    res = lensed_cls_TT_EE_TE(ell_arr, Cl_TT, Cl_EE, Cl_TE, Cl_phi_phi,
                              n_theta=n_theta)
    Cl_BB_from_EE = lensed_BB_from_EE_flat_sky(
        ell_arr, Cl_EE, Cl_phi_phi, n_l=n_l_BB, n_phi=n_phi_BB)
    if Cl_BB_unl is not None:
        # Smooth the input BB (e.g. tensor) by the same Gaussian lensing envelope
        sigma2 = res['sigma2_alpha']
        Lpp = ell_arr * (ell_arr + 1.0)
        Cl_BB_in_smoothed = np.asarray(Cl_BB_unl) * np.exp(-0.5 * Lpp * sigma2)
    else:
        Cl_BB_in_smoothed = np.zeros_like(ell_arr, dtype=float)
    res['Cl_BB_lensed']       = Cl_BB_from_EE + Cl_BB_in_smoothed
    res['Cl_BB_from_EE_lensing'] = Cl_BB_from_EE
    return res

The output dictionary has keys Cl_TT_lensed, Cl_EE_lensed, Cl_TE_lensed, Cl_BB_lensed (and Cl_BB_from_EE_lensing for diagnostic comparison).

Running the code

Cell: produce lensed scalar spectra

ells_unl  = result['ells']
Cl_TT_unl = result['Dl_TT'] * 2*np.pi / (ells_unl*(ells_unl+1))
Cl_EE_unl = result['Dl_EE'] * 2*np.pi / (ells_unl*(ells_unl+1))
Cl_TE_unl = result['Dl_TE'] * 2*np.pi / (ells_unl*(ells_unl+1))
Cl_phi_interp = np.interp(ells_unl, phi['ell'], phi['Cl_phi_phi'])
lensed = lens_spectra(ells_unl, Cl_TT_unl, Cl_EE_unl, Cl_TE_unl, Cl_phi_interp)

Plot: lensed vs unlensed

Cell: lensed vs unlensed

fig, axes = plt.subplots(2, 3, figsize=(15, 8),
                         gridspec_kw={'height_ratios': [3, 1]})
for col, label, unl, lens in [
    (0, 'TT', Cl_TT_unl, lensed['Cl_TT_lensed']),
    (1, 'EE', Cl_EE_unl, lensed['Cl_EE_lensed']),
    (2, 'BB', np.zeros_like(Cl_TT_unl), lensed['Cl_BB_lensed'])]:
    top, bot = axes[0, col], axes[1, col]
    Dl_unl  = ells_unl*(ells_unl+1)/(2*np.pi) * unl
    Dl_lens = ells_unl*(ells_unl+1)/(2*np.pi) * lens
    if label == 'BB':
        top.loglog(ells_unl, Dl_lens, 'C3-', lw=1.4, label='lensed')
        top.set_ylim(1e-5, 1)
        bot.axis('off')
    else:
        top.loglog(ells_unl, Dl_unl, 'C0--', lw=1.2, label='unlensed')
        top.loglog(ells_unl, Dl_lens, 'C3-', lw=1.4, label='lensed')
        resid = 100*(Dl_lens - Dl_unl)/np.maximum(Dl_unl, 1e-30)
        bot.semilogx(ells_unl, resid, 'k-', lw=1.0)
        bot.axhline(0, color='gray', lw=0.5)
        bot.set_xlabel(r'$\ell$'); bot.set_ylabel('residual [%]')
        bot.set_xlim(2, 2500); bot.grid(True, which='both', alpha=0.3)
    top.set_title(label); top.set_xlim(2, 2500); top.legend()
    top.set_ylabel(rf'$\mathcal{{D}}_\ell^{{{label}}}\,[\mu K^2]$')
    top.grid(True, which='both', alpha=0.3)
plt.tight_layout(); plt.show()

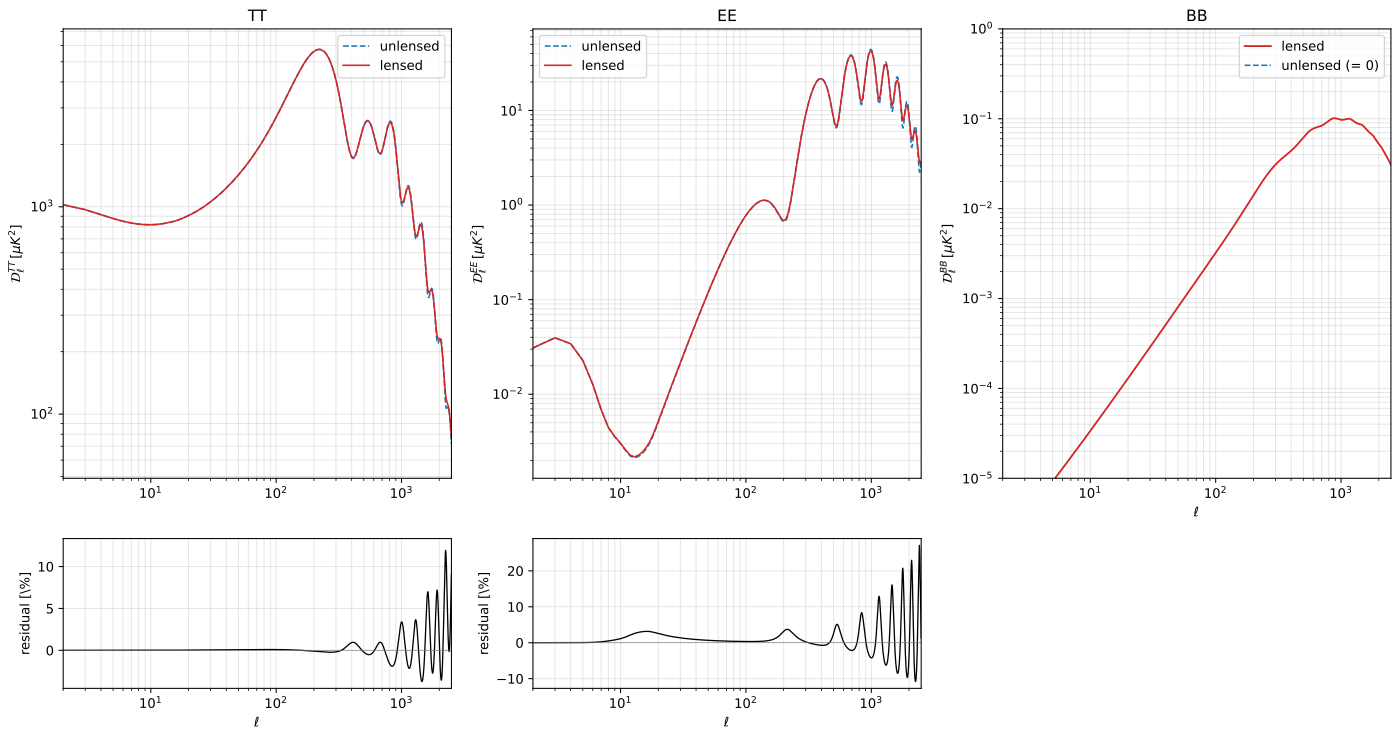

Three panels, three lessons:

TT: lensing smooths the acoustic peaks visibly only at $\ell \gtrsim 1000$ . The smoothing transfers power from peaks to troughs at the few-percent level.
EE: similar smoothing pattern, with adjacent-multipole coupling shifting EE peaks slightly.
BB: the unlensed spectrum is identically zero for scalar perturbations. The solid red curve is entirely generated by lensing, via the flat-sky $E \to B$ leakage above. The peak at $\ell \sim 1000$ corresponds to the $E$ -mode acoustic scale modulated by the lensing deflection scale ( $\sim 2'$ ). This is the dominant foreground for any primordial $B$ -mode search.

Delensing

Because lensing $B$ -modes are non-Gaussian, it is in principle possible to “delens” the observed maps: reconstruct $\phi$ from higher-order statistics of $E$ and $B$ themselves, and subtract its action on $E$ to recover an unlensed estimate. We do not implement it here, but mention that delensing changes the practical sensitivity to $r$ by roughly a factor of two.

Looking ahead

We have lensed scalar spectra. Chapter 7 adds the contribution from primordial gravitational waves, producing a primary $B$ -mode signal that competes with the lensing $B$ -modes at low $\ell$ . Together they make the final, observable CMB spectra.
