The line-of-sight integral

In principle the Boltzmann hierarchy of chapter 3 gives us the photon distribution $\Theta_\ell(\vec k, \tau_0)$ at the observer for every $\ell$ and $\vec k$. In practice this is hopeless: to get to $\ell_\mathrm{max} \approx 2500$ we would need to evolve thousands of multipoles per mode, with each multipole receiving streaming power from below. The numerical cost is prohibitive.

Seljak and Zaldarriaga (1996) found a way out. Their observation is that the Boltzmann equation can be written in integral form, with the streaming part of the operator turned into a spherical Bessel function, leaving only the source terms – scattering, monopole, Doppler, ISW – to be computed dynamically. Then we evolve the hierarchy only to the few low multipoles needed to build the sources (typically $\ell \leq 3$), and project them onto the sphere with a line-of-sight integral. This chapter derives that integral and constructs the source function.

Spherical-harmonic toolbox

The geometry of the projection from $\vec k$-space to the sky requires three identities. They are standard and we collect them here for reference.

Plane wave expansion.

A plane wave with wavevector $\vec k$ expanded in spherical harmonics about an origin:

Equivalently, in the form we will use:

Spherical Bessel functions.

Defined by

For small argument $j_\ell(x) \sim x^\ell/(2\ell + 1)!!$; for large argument $j_\ell(x) \sim x^{-1}\sin(x - \ell\pi/2)$. Near $x = \ell$ there is a peak and the function transitions from exponentially suppressed to oscillatory. This sharp localisation in $k \cdot r$ near $\ell/r$ is what makes the Limber approximation (chapter 6) work and what allows us to localise transfer-function support in $k$.

The recurrence we will use repeatedly:

Addition theorem.

This is how we move from the $\vec k$-axis frame (where the Boltzmann hierarchy lives) to the sky frame (where we project onto $Y_{\ell m}$ harmonics).

From the Boltzmann hierarchy to an integral

We work with the conformal time variable $\tau$ along a photon trajectory from last scattering to today. A photon arriving at the observer from direction $\hat n$ at time $\tau_0$ has, at the earlier time $\tau$, the spatial position $\vec x(\tau) = (\tau_0 - \tau)\,\hat n$. Write $\chi(\tau) = \tau_0 - \tau$ for the comoving distance back to that time.

The Boltzmann equation for the temperature anisotropy along a photon path is

where the source $S^T$ collects all non-streaming terms: Thomson scattering off electrons (which feeds in $\Theta_0 + \mu v_b + \tfrac{1}{2}P_2(\mu)\Pi$ from the monopole, Doppler, and polarisation-quadrupole contributions), the gravitational redshift $\dot\Phi + \mu^2\dot h/2$ (the ISW + Sachs-Wolfe terms), and so on. The integrating factor for Eq. is $e^{-\kappa(\tau)}$, and integrating gives the formal solution

The factor $e^{-\kappa(\tau)}$ is the probability that a photon survived from $\tau$ to today without re-scattering. This is the line-of-sight form: an integral over conformal time of a source weighted by the surviving fraction.

Going to $\vec k$-space and projecting onto multipoles

Fourier transform Eq., expand $e^{i\vec k\cdot \vec x(\tau)} = e^{i k\chi(\tau)\,\mu}$ using Eq., and project onto multipoles using the addition theorem. After lengthy but standard algebra the result is the line-of-sight integral for the temperature transfer function:

with $\chi = \tau_0 - \tau$, and where the three source components are

Here $g(\tau) = \dot\kappa\,e^{-\kappa}$ is the visibility function from chapter 2, and $\Pi = (\pi_\gamma + 9 E_2/5)/10$ is the polarisation source. The three terms in $\widetilde S^T_0$ correspond to the integrated Sachs-Wolfe effect (ISW), the Sachs-Wolfe + intrinsic temperature contribution at last scattering, and a small quadrupolar contribution to the temperature monopole. The $\widetilde S^T_1$ piece is the Doppler effect: photons scatter off baryons whose peculiar velocity is $v_b$. The $\widetilde S^T_2$ piece is the quadrupole-induced polarisation feedback.

Why three Bessel channels?

The original Seljak-Zaldarriaga source had a single Bessel function $j_\ell$ multiplied by a long expression. Integration by parts on the $\dot v_b$ and $\dot\Pi$ terms moves the time derivatives off the source and onto the kernel, generating $j_\ell'(k\chi)$ and $j_\ell''(k\chi)$. The boundary terms vanish because $g(\tau)$ is zero outside recombination/reionisation. The advantage is that $\widetilde S^T_0, \widetilde S^T_1, \widetilde S^T_2$ are all built from low-$\ell$ photon multipoles ($\Theta_0$, $\Theta_2$, $E_2$) plus metric variables; we do not need the full hierarchy.

The $E$-mode source

For polarisation a similar derivation, with spin-weighted spherical harmonics in place of ordinary $Y_{\ell m}$, gives

with the $E$-mode source

The geometric prefactor $\sqrt{(\ell+2)!/(\ell-2)!} \approx \ell^2$ for large $\ell$ comes from the differential operator that turns the spin-2 polarisation field into the scalar $E$ mode. The $1/(k\chi)^2$ is the dual Bessel-function factor that makes Eq. the correct projection of a spin-2 source.

Source-function decomposition in the code

To match the numerical structure of Eq., our code returns four arrays per $(k, \tau)$ pair:

The $1/(\chi^2 k^2)$ factor in src_E absorbs the $1/(k\chi)^2$ in Eq. ahead of time, so the LOS integral simply convolves src_E with $j_\ell$ – no separate Bessel-derivative book-keeping for the $E$ mode.

Building the source function: gravitational potentials

The synchronous-gauge code from chapter 3 carries $\eta$ and $h$, not $\Phi$ and $\Psi$. To use the line-of-sight formula we need to reconstruct the Newtonian-gauge metric variables, or equivalently the Weyl potential $\Psi_W$. The relation in synchronous gauge is

where the bracketed combination is the same one that enters the Einstein 00-equation. Its time derivative $\dot\Psi_W$, which sources the ISW effect, can be evaluated from the Boltzmann hierarchy without re-evaluating the full RHS – we have all the ingredients ($\dot\pi_\gamma$, $\dot\pi_\nu$, $\dot\sigma$) already.

The code: build_sources

def build_sources(tau, y, k, pgrid, thermo):
    """Source function building blocks at a single (k, tau) point.

    Returns (ISW, monopole, sigma+vb, vis, polter, source_E) -- the
    raw pieces that get combined into the three temperature Bessel
    channels and the E-mode source.
    """
    (a, adotoa, grhog_t, grhor_t, grhoc_t, grhob_t,
     dgrho, dgq, z, sigma,
     etak, clxc, clxb, vb, clxg, qg, pig, clxr, qr, pir) = _common_terms(
        tau, y, k, pgrid['bg_vec'], pgrid['sp_a_x'], pgrid['sp_a_c'])
    opacity = max(float(_cubic_eval(pgrid['sp_op_x'], pgrid['sp_op_c'], tau)),
                  1e-30)
    k2 = k * k

    E2 = y[IX_POL] if LMAXPOL >= 2 else 0.0

    # --- Weyl potential phi = (Phi + Psi)/2 in synchronous gauge ---
    dgpi = grhog_t * pig + grhor_t * pir
    phi  = -((dgrho + 3.0 * dgq * adotoa / k) + dgpi) / (2.0 * k2)

    # --- Compute phi_dot directly from hierarchy equations ---
    polter = pig / 10.0 + 9.0 / 15.0 * E2
    Theta3 = y[IX_G + 3] if LMAXG >= 3 else 0.0
    N3     = y[IX_R + 3] if LMAXNR >= 3 else 0.0
    pigdot = (2*k/5*qg - 3*k/5*Theta3 - opacity*(pig - polter) + 8*k*sigma/15)
    pirdot = (2*k/5*qr - 3*k/5*N3 + 8*k*sigma/15)
    pidot_sum  = grhog_t * pigdot + grhor_t * pirdot
    diff_rhopi = pidot_sum - 4.0 * adotoa * dgpi
    gpres_plus_grho = (4.0/3.0) * (grhog_t + grhor_t) + grhoc_t + grhob_t
    phidot = 0.5 * (adotoa * (-dgpi - 2.0 * k2 * phi) + dgq * k
                     - diff_rhopi + k * sigma * gpres_plus_grho) / k2

    # --- Visibility and exp(-tau) at this time ---
    tau_min, tau_max = thermo['tau_arr'][0], thermo['tau_arr'][-1]
    if tau < tau_min or tau > tau_max:
        vis    = 0.0
        exptau = np.exp(-thermo['tau_optical'][0]) if tau < tau_min else 1.0
    else:
        vis    = float(thermo['visibility_interp'](tau))
        exptau = float(thermo['exptau_interp'](tau))

    # --- Three source components ---
    ISW       = 2.0 * phidot * exptau                       # 2 phi_dot e^{-kappa}
    monopole  = -etak / k + 2.0 * phi + clxg / 4.0          # Theta_0 + Psi_W + (3/8) delta_b...
    chi       = pgrid['tau0'] - tau
    source_E  = 15.0 / 8.0 * vis * polter / (chi**2 * k2) if chi > 0 else 0.0

    return ISW, monopole, sigma + vb, vis, polter, source_E

Walking through the function.

• phi is the Weyl potential $\Psi_W$ computed from Eq.: the combination of $\delta\rho$, $(\rho + p)\theta$, and anisotropic stress that appears in the Einstein 00-equation.

• phidot is its time derivative, computed directly from the hierarchy equations – this avoids re-evaluating the full Boltzmann RHS just to get $\dot{\Psi}_W$.

• ISW = 2 phidot exptau is the integrated Sachs-Wolfe contribution to $\widetilde S^T_0$.

• monopole = -etak/k + 2 phi + clxg/4 is the Sachs-Wolfe combination $\Theta_0 + \Psi_W$ in synchronous gauge.

• sigma + vb is the Doppler source $\widetilde S^T_1$ apart from the visibility prefactor.

• polter is the polarisation source $\Pi = \pi_\gamma/10 + 9 E_2/15$.

• source_E is $\widetilde S^E/(k\chi)^2 = (15/8)\, g\, \Pi/(k\chi)^2$, ready for the LOS integral.

The caller (evolve_k in the next chapter) assembles these into the three temperature channels

Updated evolve_k: also return source functions

Our evolve_k from chapter 3 returns the full perturbation state. For the LOS step we want source functions at each output time. Extend the function to return both.

def evolve_k(k, bg, thermo, pgrid, tau_out):
    """Evolve perturbations for wavenumber k, return source functions on tau_out.
    Returns (src_j0, src_j1, src_j2, src_E)."""
    tau_start = min(0.01 / k, tau_out[0] * 0.5)
    tau_start = max(tau_start, 0.1)
    y0 = adiabatic_ics(k, tau_start, bg, pgrid)

    bg_vec  = pgrid['bg_vec']
    sp_a_x  = pgrid['sp_a_x'];  sp_a_c  = pgrid['sp_a_c']
    sp_op_x = pgrid['sp_op_x']; sp_op_c = pgrid['sp_op_c']
    sp_cs_x = pgrid['sp_cs_x']; sp_cs_c = pgrid['sp_cs_c']

    sol = integrate.solve_ivp(
        lambda tau, y: boltzmann_derivs(
            tau, y, k, bg_vec, sp_a_x, sp_a_c, sp_op_x, sp_op_c, sp_cs_x, sp_cs_c),
        [tau_start, tau_out[-1]], y0, t_eval=tau_out,
        method='LSODA', rtol=1e-5, atol=1e-8, max_step=20.0)
    if not sol.success:
        raise RuntimeError(f"ODE solver failed for k={k:.4e}: {sol.message}")

    ntau = len(tau_out)
    ISW_arr      = np.zeros(ntau)
    monopole_arr = np.zeros(ntau)
    sigma_vb_arr = np.zeros(ntau)
    vis_arr      = np.zeros(ntau)
    polter_arr   = np.zeros(ntau)
    src_E        = np.zeros(ntau)
    for i, tau in enumerate(tau_out):
        (ISW_arr[i], monopole_arr[i], sigma_vb_arr[i],
         vis_arr[i], polter_arr[i], src_E[i]) = build_sources(
            tau, sol.y[:, i], k, pgrid, thermo)

    # Assemble the three temperature channels
    src_j0 = ISW_arr + vis_arr * (monopole_arr + 0.625 * polter_arr)
    src_j1 = vis_arr * sigma_vb_arr
    src_j2 = 1.875 * vis_arr * polter_arr
    return src_j0, src_j1, src_j2, src_E

Transfer functions $\Delta_\ell(k)$

Once the source functions are in hand for every $k$, the LOS integral Eq. convolves them with $j_\ell, j_\ell', j_\ell''$ to give $\Delta_\ell^T(k)$. The transfer function $\Delta_\ell^T(k)$ is a peaky, oscillating function of $k$ – the projection of acoustic oscillations through a Bessel kernel.

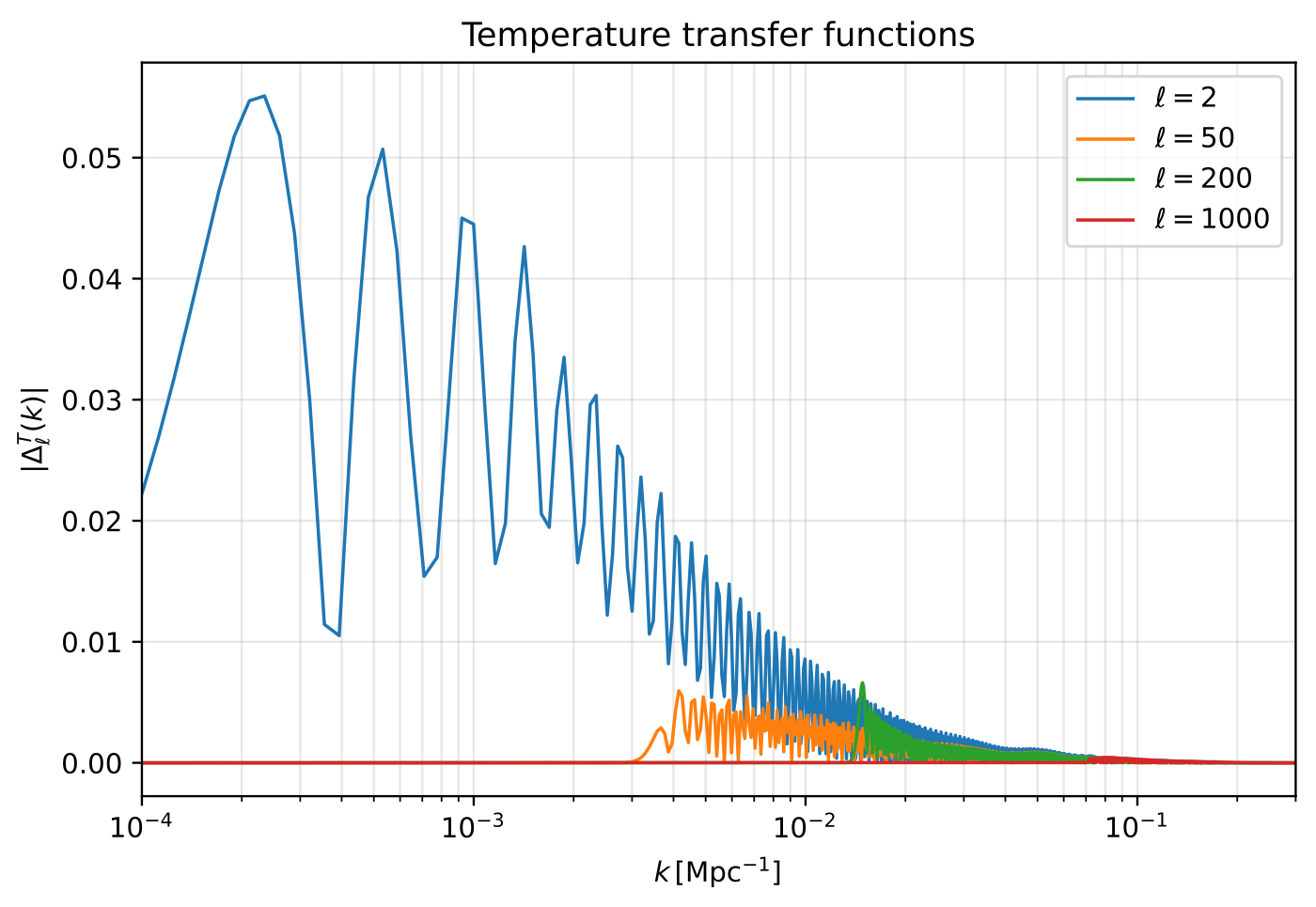

A schematic example, illustrating the qualitative structure: $\Delta_\ell(k)$ has a Bessel-localised peak near $k \approx \ell/\chi_*$ (this is the Limber-scale projection), and the wings show acoustic oscillations modulated by the Silk damping envelope.

The figure above is schematic; once you have the source functions for all $k$, the line-of-sight integral in chapter 5 will produce the real $\Delta_\ell(k)$ which you can plot from result['Delta_T'].

Looking ahead

We now have everything needed for the line-of-sight integral: source-function building blocks per $(k, \tau)$. The remaining work is bookkeeping and numerical efficiency: pick the right grids in $k$ and $\tau$, do the LOS integral for every $\ell$, integrate against the primordial power spectrum. That is chapter 5.
